Discover F-One’s New IC6 Hydrofoil
Tue 6th Feb, 2018 @ 3:00 am
F-ONE just released a the IC6, a versatile new hydrofoil. The IC6 boasts great speed range, stability, amazing carving potential, and a smooth, easy take-off. Plus, IC6 is modular, incorporating the new assembly system that was developed and patented by F-One. Find out more by reading the details below, provided by F-One.
F-ONE’s unique experience in foiling has now been gathered into the most accessible and versatile package ever, combining early and super smooth take-off, impressive control and maneuverability along with the speed range that anyone should expect from a versatile foil.
– Available with a 90cm or 65cm mast, the IC6 850 foil will please beginners and experienced riders alike. Choose the 65cm for a faster learning curve or the 90cm version for maximum versatility.
– Besides early lift, the wing design offers a very smooth and predictable ride. The carving possibilities are endless on this very user-friendly package with maximum fun potential.
– The construction focuses on reliability with aluminium used for the mast, mast foot, fuselage and front wing connector. The wings built in iC6 injected carbon are extremely resistant while providing a smooth and comfortable ride.
Technology

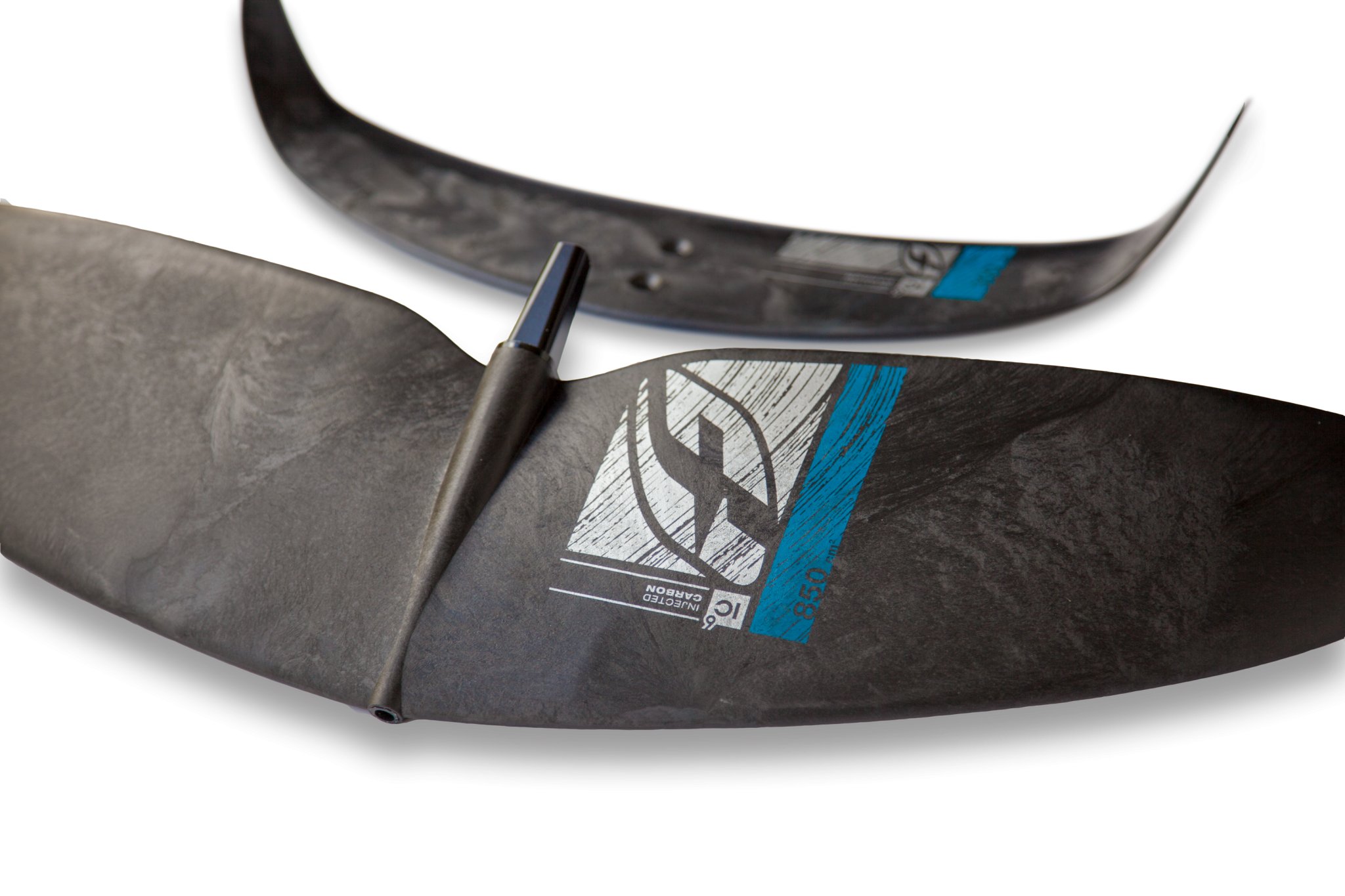

IC6 Injected Carbon
The IC6 technology mixes carbon fibers with an injected base material to reach a unique blend of characteristics, combining the strength of carbon fibers with a bombproof base material. The IC6 technology offers great resistance and stiffness with extreme durability.
KF BOX
F-ONE kitefoils are equipped with the fully conical KF-BOX. Its shape makes it easy to connect and fits well with the thickness of the kiteboards due to its moderate height. The KF-BOX offers a perfect, tight support.
Aluminium 6061
This aluminium alloy boasts some very good mechanical properties and can be processed in many different ways while also offering a natural resistance to corrosion. Produced from an extrusion process, our aluminium profiles make the most of this homogeneous material to provide perfect stiffness both in torsion and bending. All areas in contact with other metals or carbon parts are duly isolated against galvanic reactions.

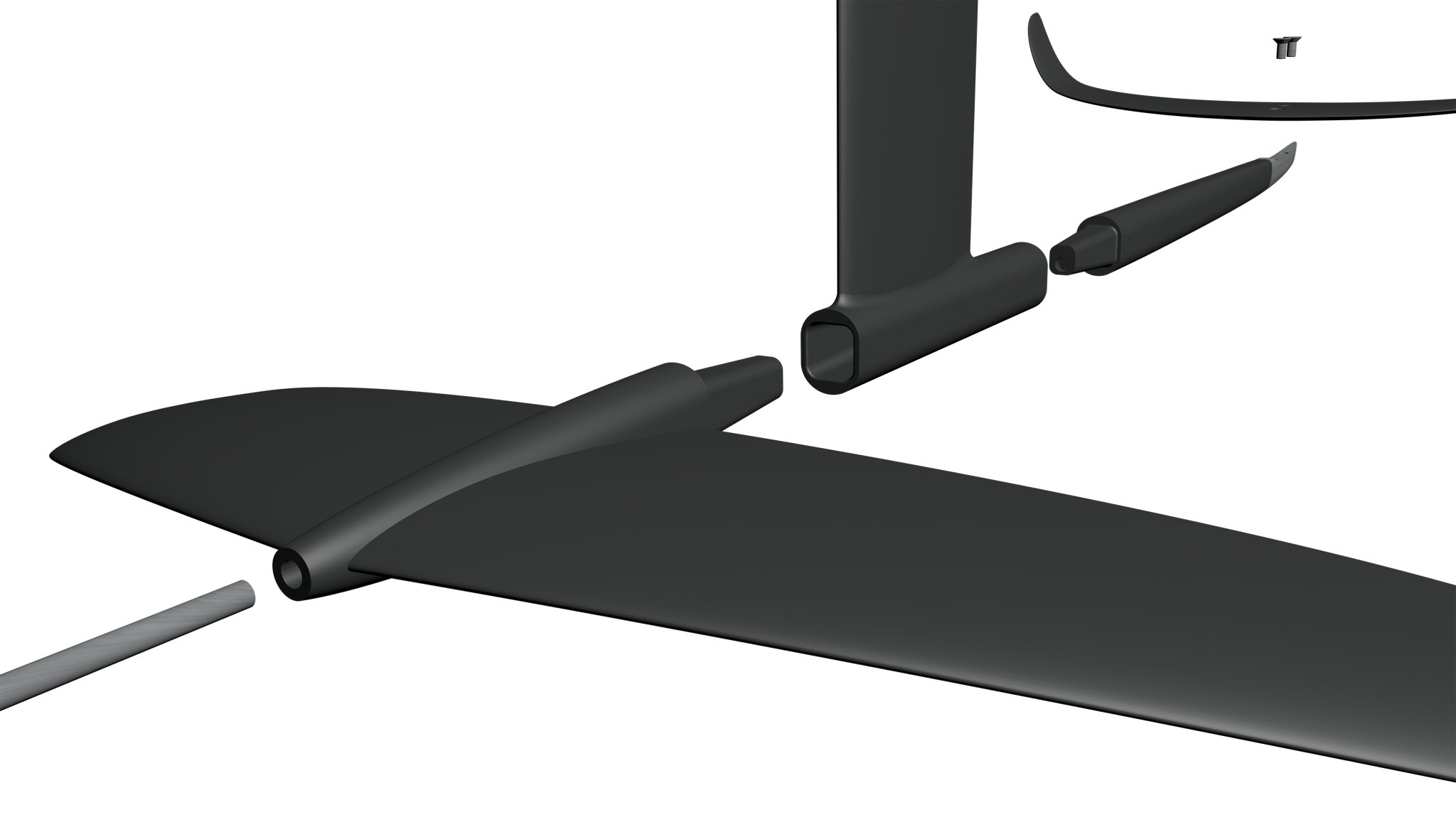

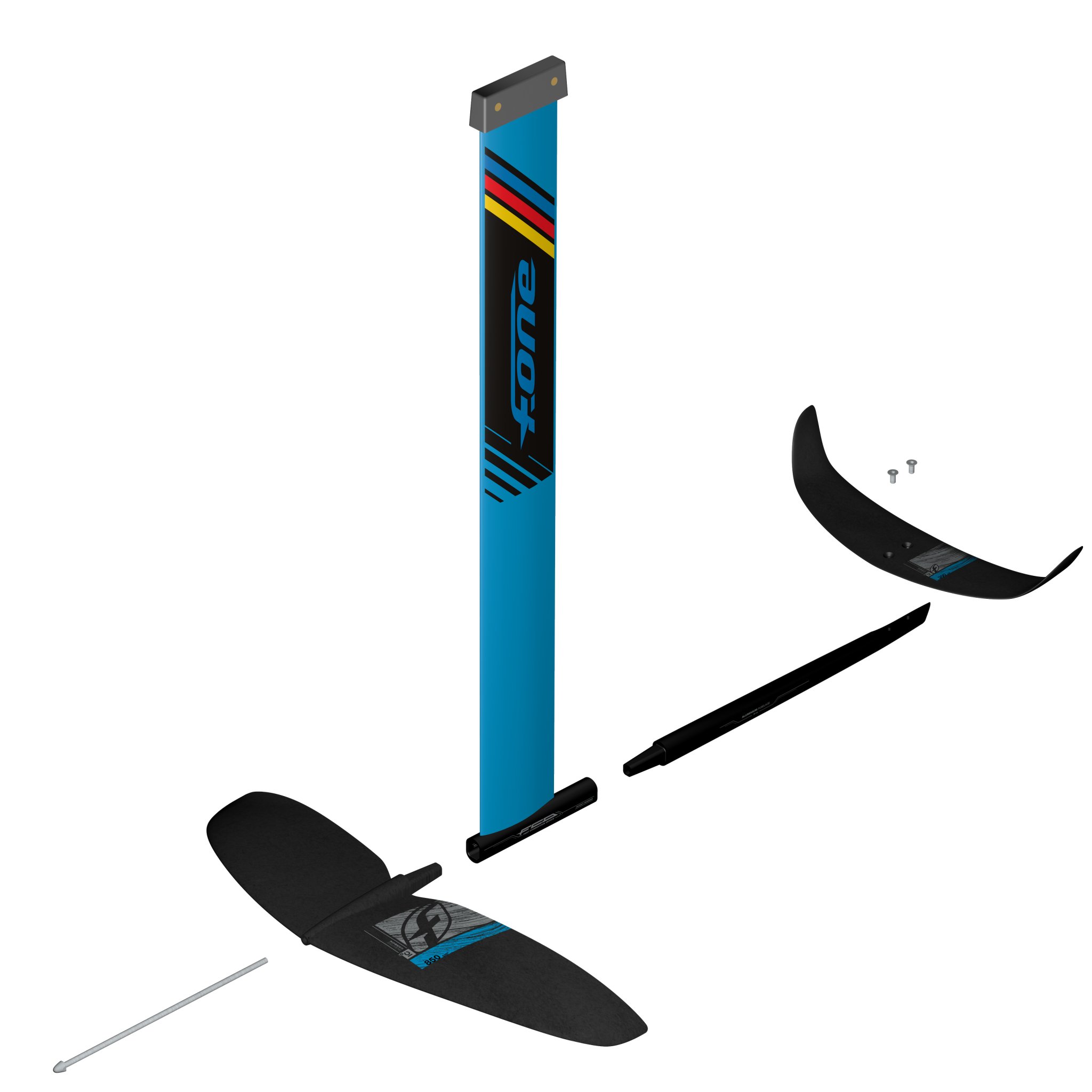

Assembly and Fast Connection Device Patent
We have developed and patented a brand new concept for the assembly of the mast, fuselage and wings because this is a critical aspect of the kitefoil. It drives the reliability and ease of use for assembling and taking the foil apart for transportation, as much as the repeatability of the trim between the front and rear wings. The bene t of the system is the one and only screw that maintains the main parts together:
– Mast
– Fuselage
– Front wing
This screw is placed longitudinally and is therefore only stressed in tension instead of shear or bending. The whole foil can be tightened up with everything working in a sound mechanical way. To gain some precision, robustness and packed-up volume, the screw is combined with a squared, conical assembling system, which has been proven as the best mechanical setup to lock any motion or degree of freedom between the parts, while also contributing greatly to tensional resistance.
